Status View

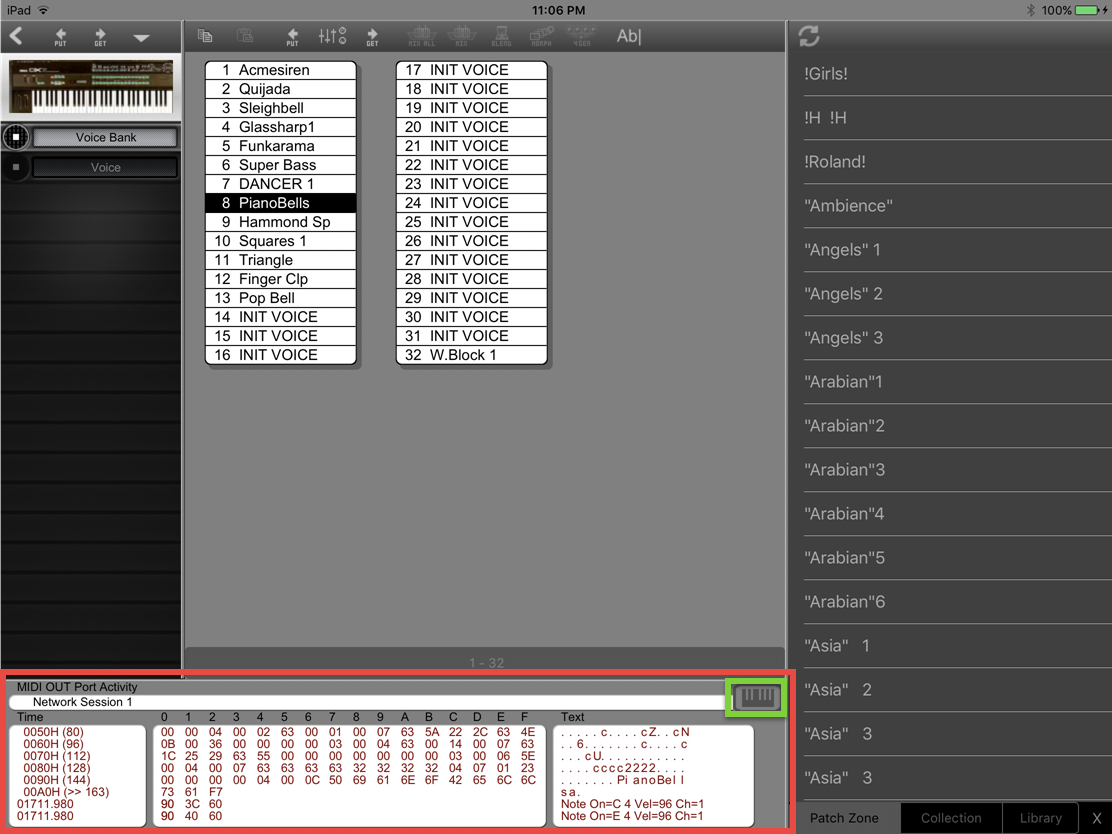

The Status view, framed in red above, is an optional view found at the bottom of Midi Quest which displays one of two sub views: the Monitor View or the Keyboard View.

The view is displayed in one of two ways. Tap the Studio-MonitorView Status view button to toggle the state of the view. Alternately, edge swipe up from the bottom to display the Status view when it is hidden. To close the Status view, tap the "X" in the right hand side of the view or perform a two finger downwards flick to close the view.

When the Monitor view is displayed, tap the Keyboard button in the upper right of the view, framed in green, to switch to the keyboard view. When the Keyboard is displayed, tap the Monitor button in the upper right to switch back to the Monitor view.
