Layer Manager (Panel Edit)
This menu item opens the Layer Manager.
The Layer Manager dialog allows you to show or hide layers of controls under manual command. This is sometimes required during development to access controls not easily displayed or hidden with the current macros.
Directions:
To manually control layer display:
| 1. | Choose Editor/Panel Edit to place the Editor in Panel Edit mode |
| 2. | Right click and choose Edit Control Parameters/Layer Manager... from the popup menu |
| 3. | Use the displayed dialog to manage control layers |
| 4. | Press the OK button to proceed with the modification |

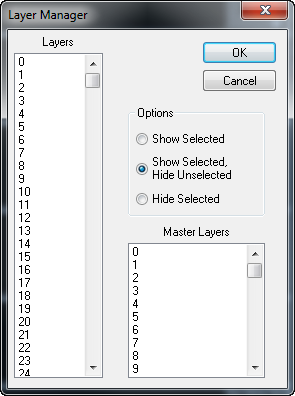

The Layer Manager Dialog
The left column of the dialog lists all of the layers available to an editor. Select the layers whose visibility you would like to adjust. Multiply layers can be selected. In Options, select the type of visibility adjustment you would like to make.
If there is a particular Master Layer you would like to adjust, you can select it form the lower right list. This selection will automatically be reflected in the list of currently selected layers.
Available in:
Midi Quest Pro |
|
Midi Quest |
|
Midi Quest Essentials |
|
Midi Quest one |
|
