Duplicate (Panel Edit)

Midi Quest Pro only

Purpose:

Opens a dialog to make one or more copies of the currently selected control and adds the new controls to the editor.

This option is ideal for making duplicate copies of a control for a combi/performance style editor

Directions:

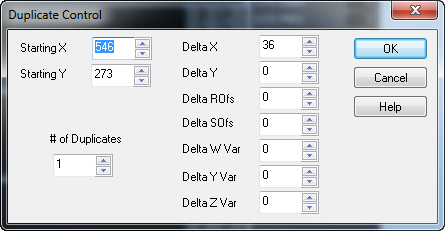

The Duplicate Dialog

This control is used to make multiple copies of the selected control.

The dialog contains a series of options which, if you are organized and careful, allows you to make a series of duplicate controls which will automatically access and editing different parameters without any additional modification.

Fill in all of the parameters then hit OK to make the duplicates.

Starting X: the starting x position for duplication

Starting Y: the starting y position for duplication

# of Duplicates: the number of duplicates to create

Delta X: the number of pixels to advance in the x direction with each duplication

Delta Y: the number of pixels to advance in the y direction with each duplication

Delta R(etrieve) Ofs: the amount to change the control's Retrieve Offset value on each duplication

Delta S(tore) Ofs: the amount to change the control's Store Offset value on each duplication

Delta W Var: the amount to change the default W variable on each duplication

Delta Y Var: the amount to change the default Y variable on each duplication

Delta Z Var: the amount to change the default Z variable on each duplication

Key Equivalent:

Ctrl+D

note: key equivalents will only work when the editor view has focus. If the panel editor has been used then the focus has been shifted and key equivalents will not work. Click the mouse in the editor view to reset the focus and enable key equivalents.

Available in:
