MQ Monitor View MQ_yes MQLT_yes MQLib_yes

Monitor

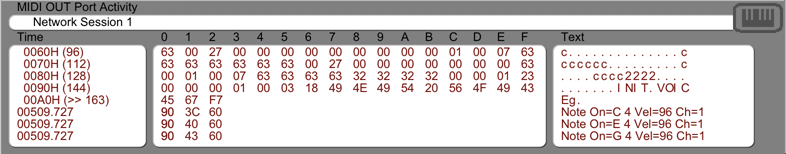

The Monitor view displays MIDI events arriving at the MIDI IN Ports and being sent to a MIDI OUT port as well as app status messages.

The text display is ideal for viewing the exact MIDI output of your instruments or to see the precise messages being sent to your instrument. This can assist you in learning about MIDI messages. It is also extremely useful while sorting out unusual problems in your MIDI system.

MIDI events arriving at a MIDI IN port are displayed in black. MIDI events being sent to a MIDI port by Midi Quest are displayed in red. Each time there is a port switch, an entry is made indicating the port which is sending the MIDI event.

The monitor window is also used to display other status messages to indicate changes within the program. For example, messages are displayed when Midi Quest senses the addition or removal of one or more MIDI ports. These status messages are displayed in blue.

The window is comprised of 3 columns. The first column shows the time of the event in seconds since the program was started. In brackets beside this value is the amount of elapsed time since the previous MIDI message. This allows you to see the amount elapsed time between SysEx messages for example and determine the source of an overload.

The middle column displays the actual MIDI events in hexadecimal format. For standard MIDI messages, this will be two or three bytes. For SysEx, as many rows are added as required for display.

The right column is displays an interpretation of the MIDI message on that line. For standard MIDI messages, this includes the message type along with the MIDI channel and message values. If a SysEx message is being displayed then the ASCII character equivalent is shown in this column.

The monitor window will also show a range internal status and error messages. This is feedback that may be useful from a technical perspective while the software is running but does not warrant the display of an error dialog.

To scroll through the information in the Monitor view slide your finger up and down in the view.

All MIDI output in Midi Quest is sent from a background thread so that it doesn't interfere with your interactions with the interface. However, for some older instruments it is necessary to slow the transmission rate in order for the instrument to receive the SysEx. This can result in SysEx messages being buffered so that the messages are sent after the initial request. To show when Midi Quest is actually sending SysEx messages, a small MIDI port icon will flash beside the port name in the "MIDI OUT Port Activity" portion of the Monitor view. This activity will be most visible when larger bulk dumps are being sent.



Monitor Menu

To display the Monitor menu, two finger tap on the Monitor view. The Monitor menu contains two groups of options.

The first three items are used to clear the contents of the view and to copy the contents of the view to the clipboard as text. This final option allows you to copy the text information displayed in the view so that it can be pasted into another app.

The next 9 items in the menu are filter selections. You can choose to display or not display: note off, note on, polyphonic aftertouch, controllers, patch changes, channel aftertouch, pitch wheel, system and real time events, and SysEx messages.
