MQ Swap (Bank Editor) MQ_yes MQLT_yes MQLib_yes



Purpose:

Swap is used to swap Patches in a Bank. Swap can also swap Patches between two banks.

The program allows you to select any number of Patches which are then "copied". After copying, select the Patches that are to be swapped with the "copied" Patches. The same number of Patches should be selected for swapping as were selected for copying. otherwise, the program will stop swapping when it runs out of either "copied" or selected Patches.

Directions:

To Swap multiple Patches:

1.Select one or more Patches to swap
2.Two finger tap in the bank editor to display the pop-up menu
3.Choose Copy
4.Select the Patches to swap with the copied Patches
5.The number of copied Patches should equal the number of Patches now selected for swapping
6.Two finger tap in the bank editor to display the pop-up menu
7.Choose Swap

Example:

eg. To swap Patches 1 - 4 with 9 - 12

1.Select Patches 1 - 4.
2.Two finger tap in the bank editor to display the pop-up menu
3.Choose Copy
4.Select Patches 8 - 12
5.Two finger tap in the bank editor to display the pop-up menu
6.Choose Swap

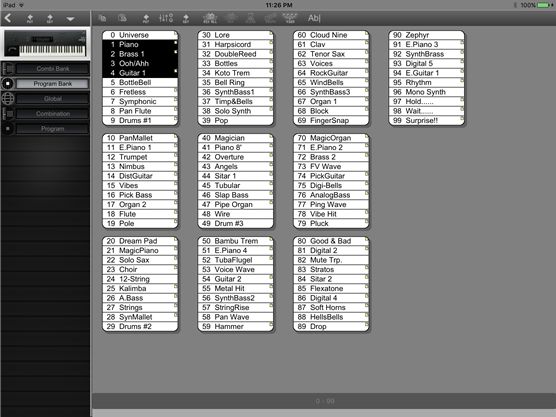

Before swapping:

Bank Paste 1

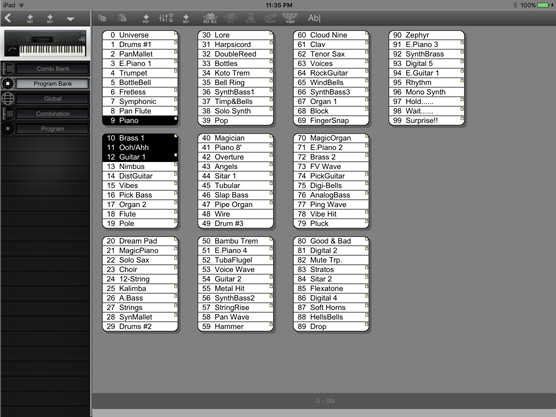

After swapping: Patches 1-4 have been swapped with 9-12

Bank Swap 1
