MQ Rotate (Bank Editor) MQ_yes MQLT_no MQLib_no

Purpose:

Rotate shifts a range of selected Patches either up or down one location in the Bank. In this way, space for a new Patch may be created in the middle of a Bank without the subsequent order of Patches in the Bank being changed.

Note: All Patches from the first through last selected Patch are rotated. This includes any unselected Patches located in between the first and last Patch.

Directions:

To rotate Patches:

1.Select a continuous RANGE of Patches
2.Two finger tap in the bank editor to display the pop-up menu
3.Choose either Rotate Range Up, or Rotate Range Down

Example:

To make room for a new Patch in location 4 by rotating Patches 4 - 32 down 1:

1.Click the mouse on Patch 4
2.Hold the mouse button down and drag the mouse to Patch 32
3.Release the mouse button
4.Two finger tap in the bank editor to display the pop-up menu
5.Choose Rotate Range Down

Before rotating down:

Bank Rotate 1

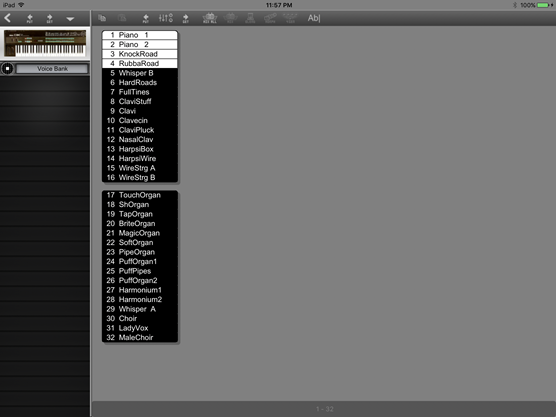

After rotating:

Bank Rotate 2
